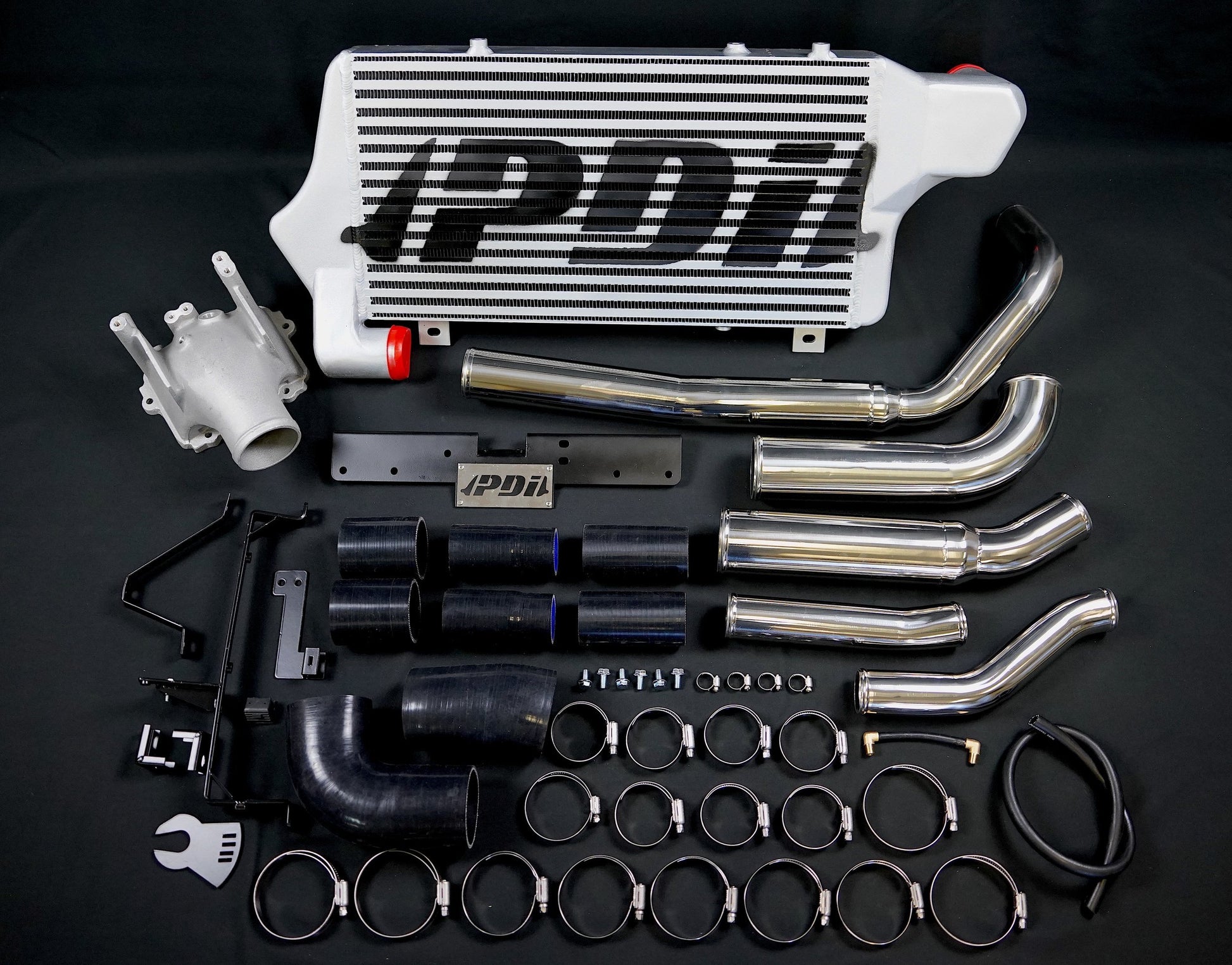

PDI 200 Series Landcruiser Front Mount Intercooler Kit

Core is 610x320x76mm located to get huge air draw through from the main engine fan.

Pipework is all stainless steel for longevity and durability.

Quality USA made Breeze clamps and silicon is thick 5ply to ensure the setup is trouble free.

The Mk2 200 series kit was released late 2019 and has a new core and end tank design. This is the next generation for even more cooling ability and with enhancements such as:

‰ۢ improved drivability and performance increase across the board.

‰ۢ recessed design for max draw through from main engine fan for better slow speed cooling

‰ۢ transmission cooler location improved to sit directly behind the grill to prioritise cooling.

‰ۢ easier fitting

NOTE: We have been informed that this kit is not compatible with the Ironman bulbar as it will interfere with the mounts. Additionally we can not provide assurance that these will fit with winches as even within a single design they have variations over the years.

To confirm the clearance for the current model PDI intercooler you will need 90mm in front of the lower radiator support. Additionally you will need 145mm (towards drivers side in RHD vehicle) from the 8mm mounting bolt to ensure clearance around the bullbar mount.  In early 2022 we will be revising the design as manufacturers keep changing the bullbar mount design and we need to make it more compatible with winch installations.
