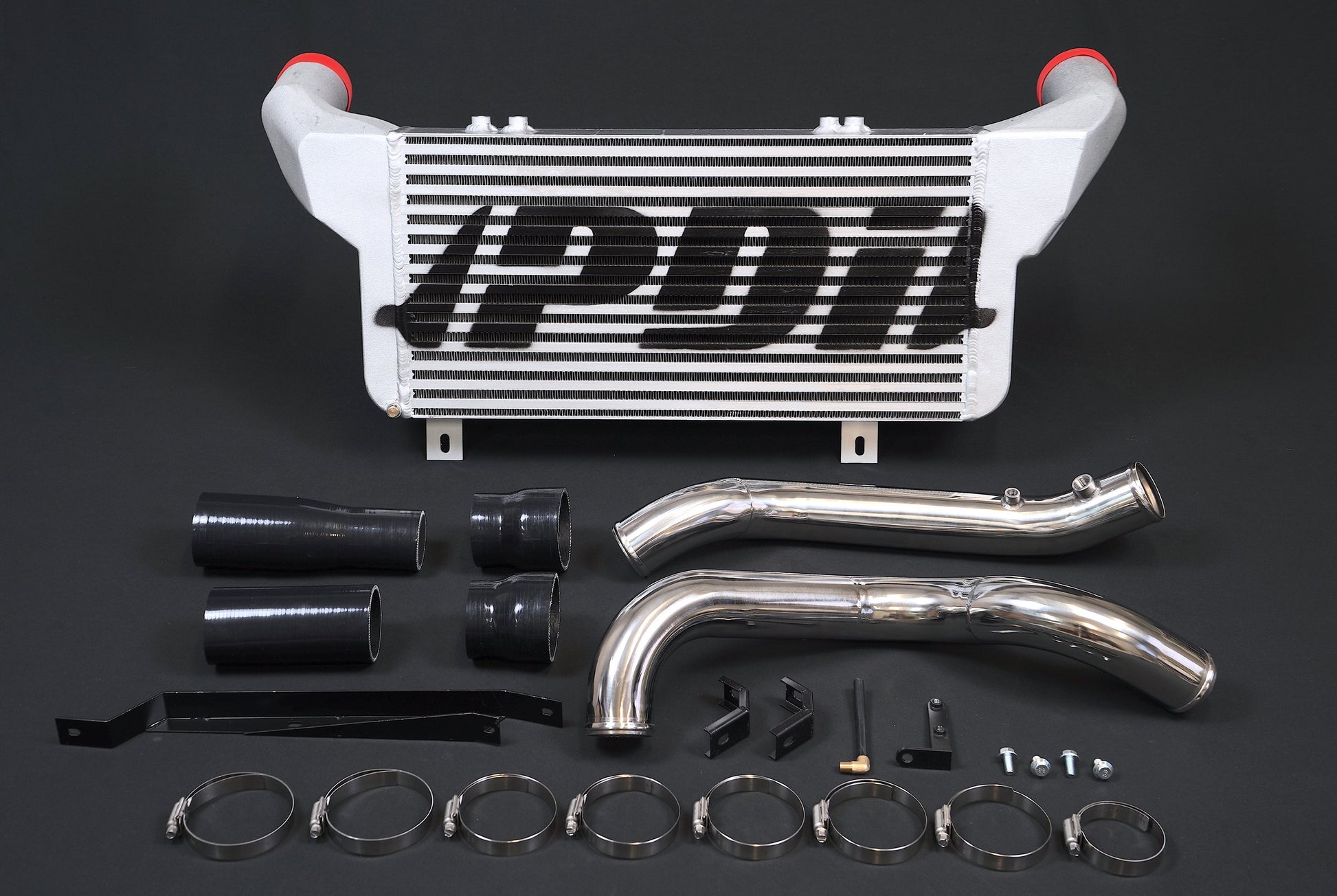

Hilux N70 KUN26 D4D Front Mount Intercooler Kit Mk 2

The PDI Mk2 Hilux front mount fits like a glove with:

• 600x300x76mm core (around 20% larger than competitors designs)

• custom high flow end tanks.

• 3' outlets into the engine bay.

• 2.5' stainless piping, thick 5 ply silicon and high torque Breeze liner clamps.

After fitting to a couple of high powered Hilux's, which already had a front mount intercooler, we have seen an increase in power delivery across the range as this larger core has allowed an even more aggressive tune.

Sits neatly at the front.  Uses zinc coated (and painted) mild steel brackets and a vertical support behind the intercooler to the lower crossmember to secure the bonnet latch. We don't use stainless as it will cause the area around to start rusting due to cathodic reaction.
