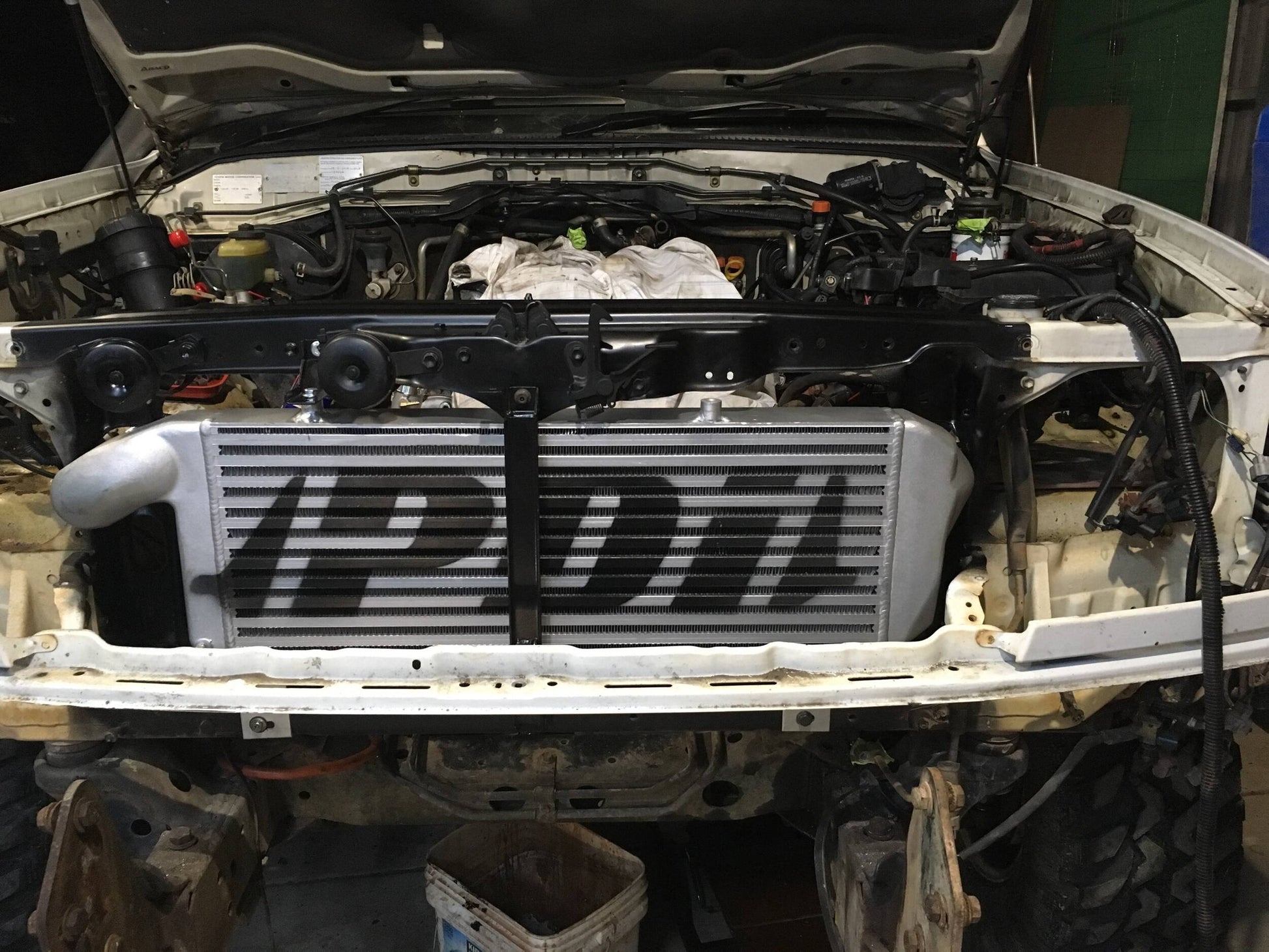

Landcruiser HZJ105 105 Series Front Mount Intercooler Mk2 1HZ series core

PDI have the largest and most efficient intercooler for the Landcruiser 100 / 105 Series. For the 1HZ powered 105 we suggest our smaller core, which is more efficient than our competitors. The core size is 645x240x65 and is better placed for increased cooling without limiting flow to the condenser and radiator. With this core we have designed the end tanks to work around the air conditioning line on the drivers side.

It is hugely important to keep your EGT (Exhaust Gas Temperatures) low in a 1HZ as high combustion temperatures will cause cracks in the piston and head. This is achieved with reduced intake air temperatures, which results in improved performance.

The PDI Landcruiser 100 / 105 Series Front Mount Mk2 intercooler significantly raises the bar for what can be achieved. Now with factory turbo engines pumping out +300rwkw, we have the intercooler that is the clear choice for such a setup.

Our intercoolers fit with all bull-bar and winch designs as the core is set back to get more draw through from the main engine fan. The fitting of thermo fans may be required for other brands where the intercooler is located too far forward and there is no draw through or ramming of air from the front since the bullbar and other items are in the way.

See below for more information.
